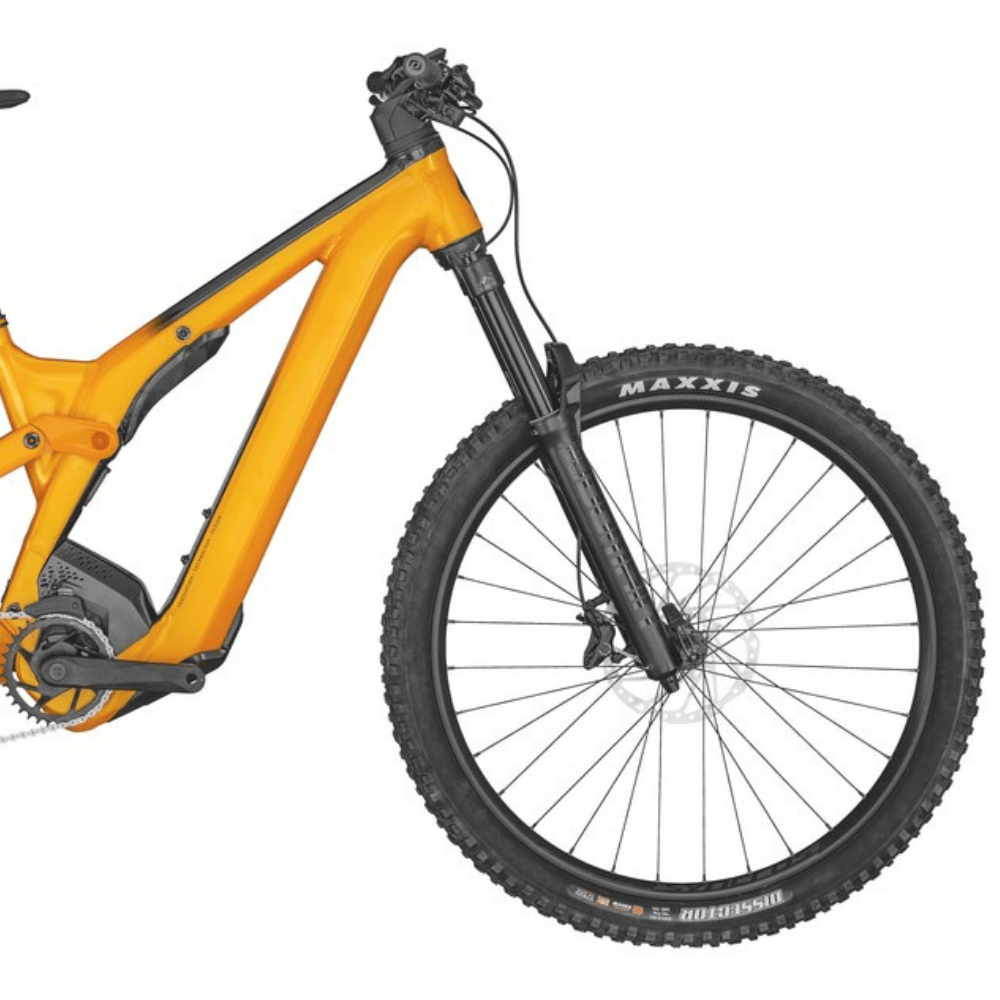

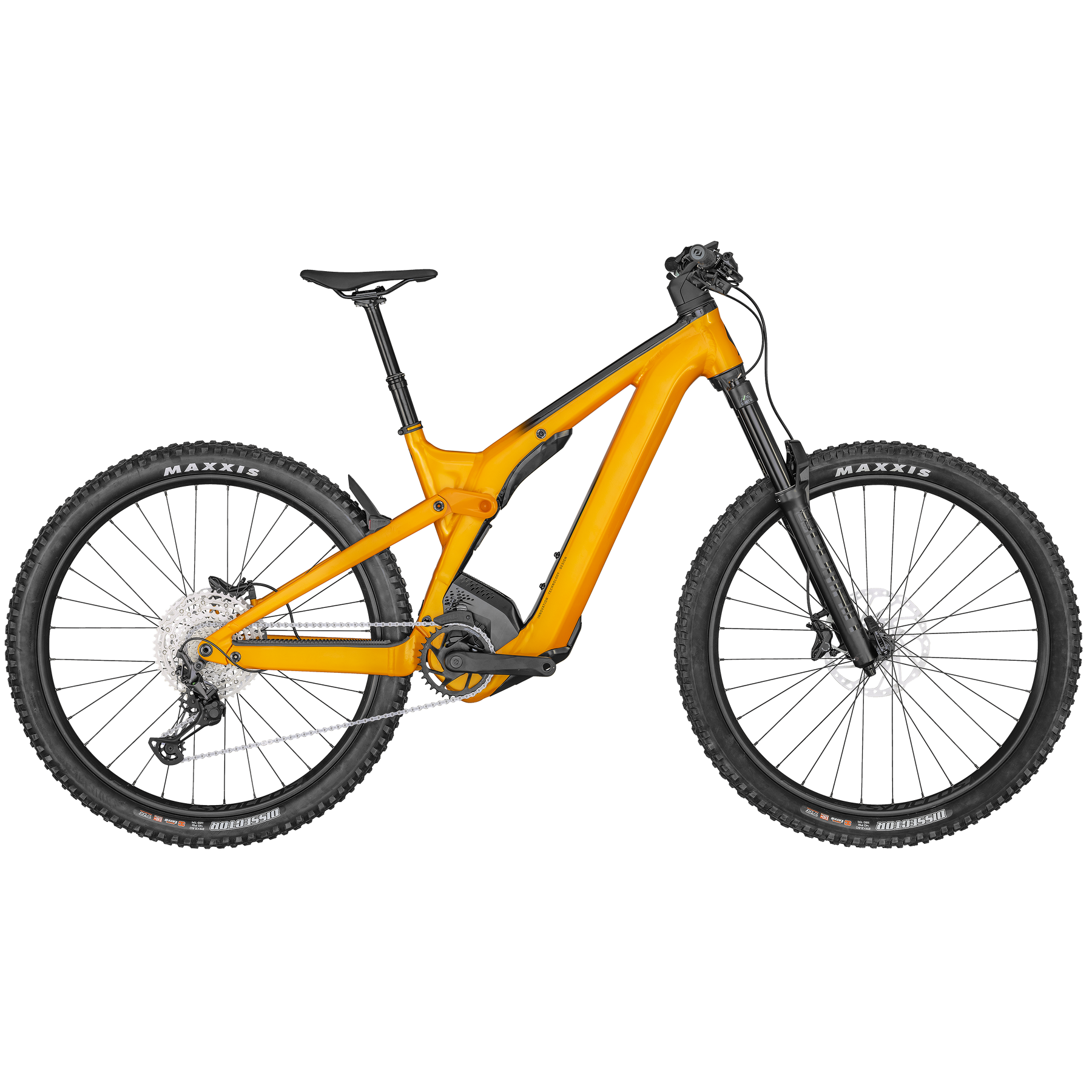

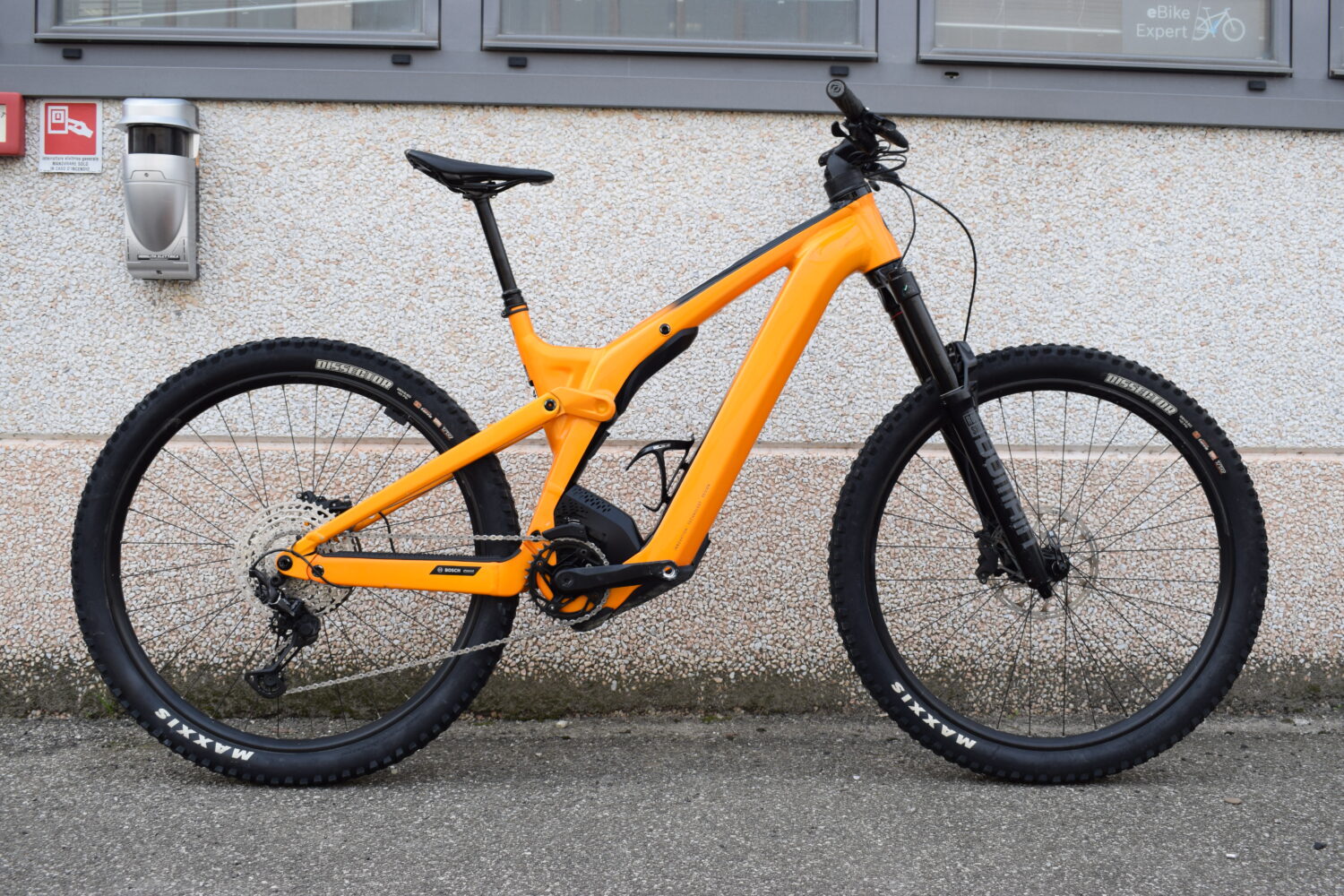

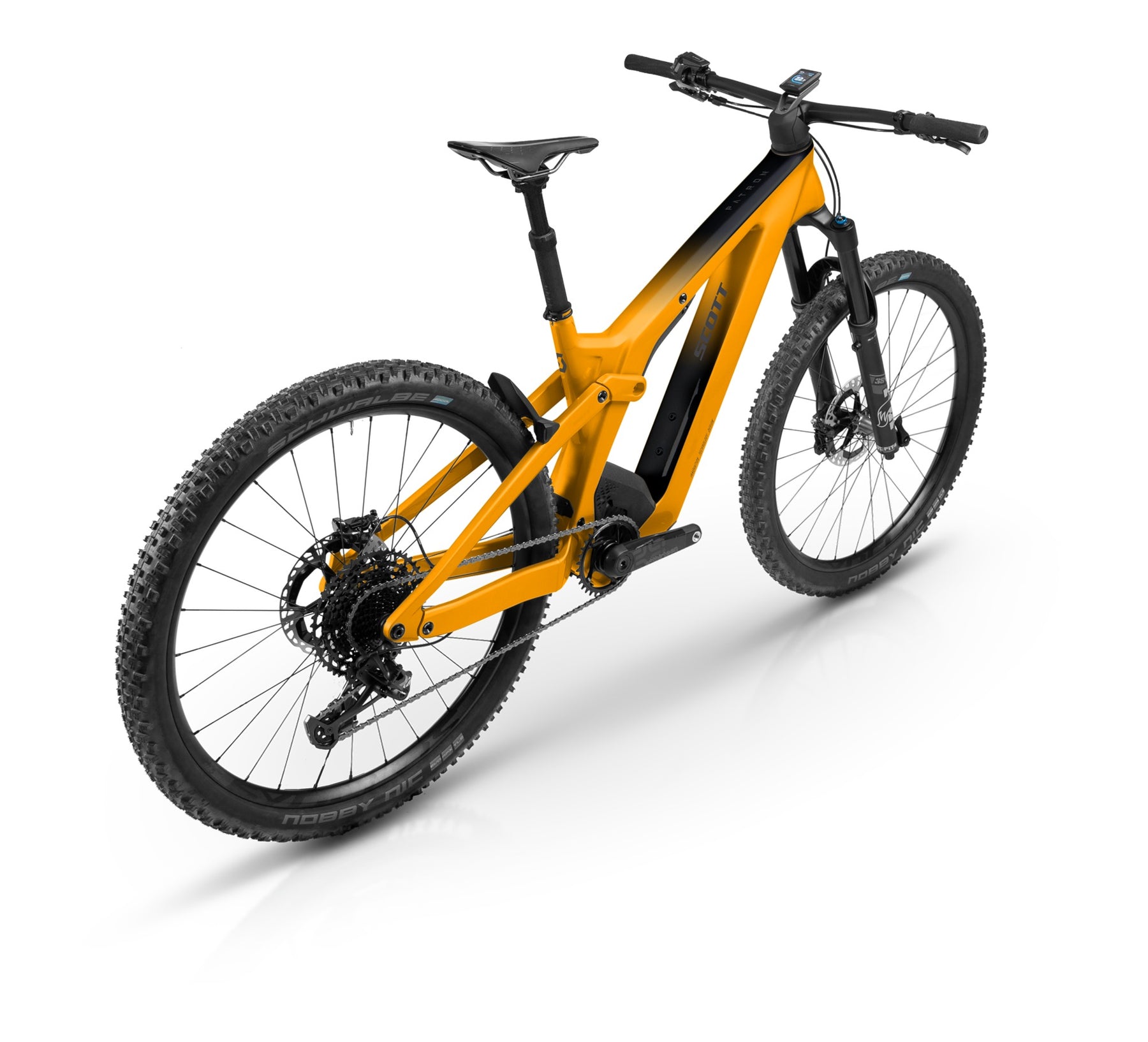

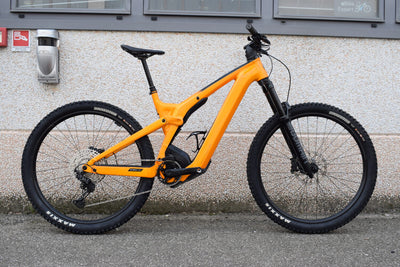

PATRON ERIDE 920 2022 ORANGE
KEY FEATURES
- Patron eRIDE Alloy Frame
- RockShox Domain 160mm Fork
- FOX Float EVOL eRIDE, 160mm, TwinLoc
- Shimano XT-Deore 12 Speed
- Bosch CX, 750Wh PowerTube
- Shimano 4 Piston Disc Brakes
- Maxxis Foldable Tires
- Syncros Dropper Post and Parts
- Bosch Light Cable pre-installed F&R
- The all-new Patron eRIDE 920 was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.
Please note that bike specifications are subject to change without prior notice -

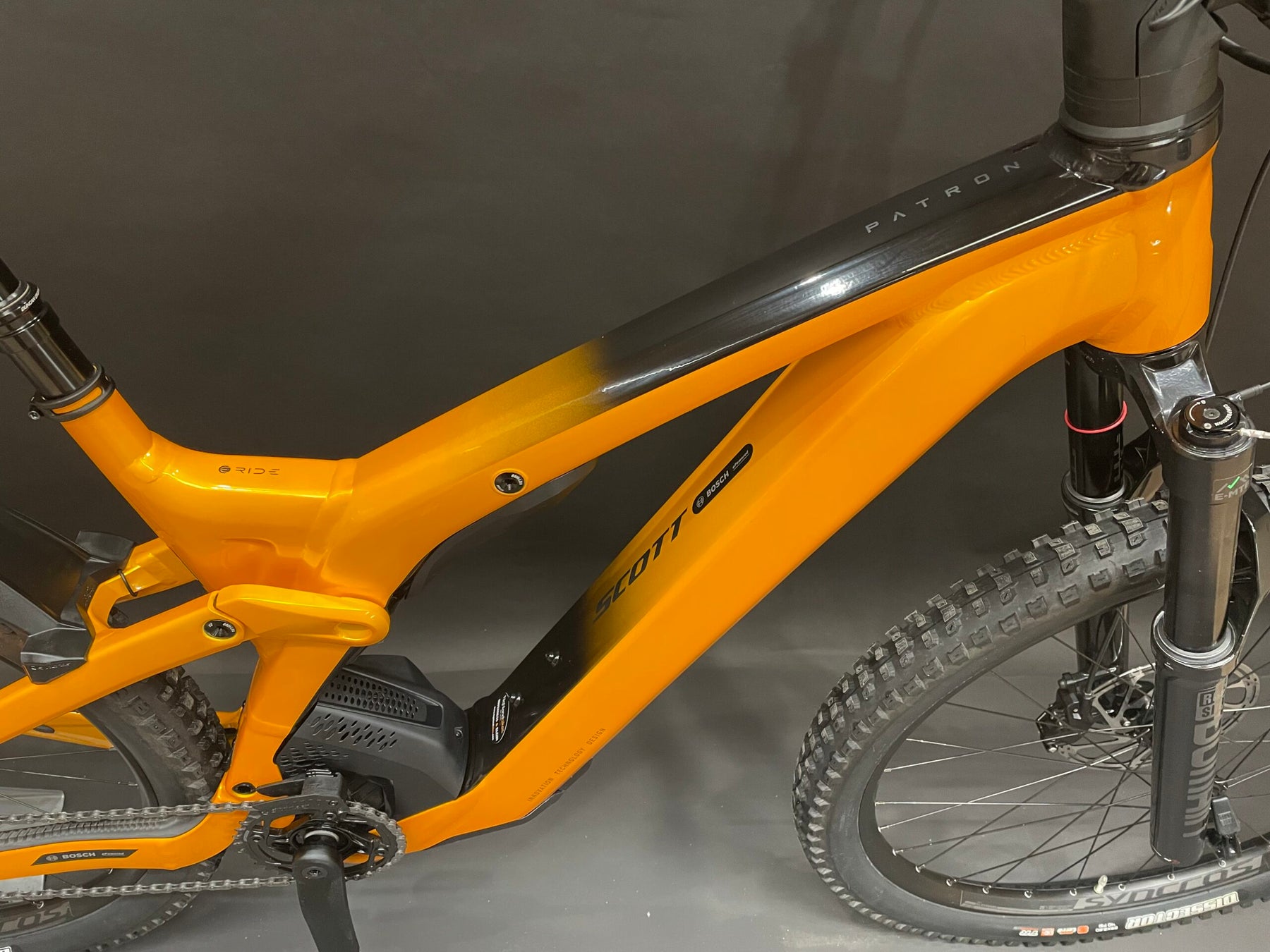

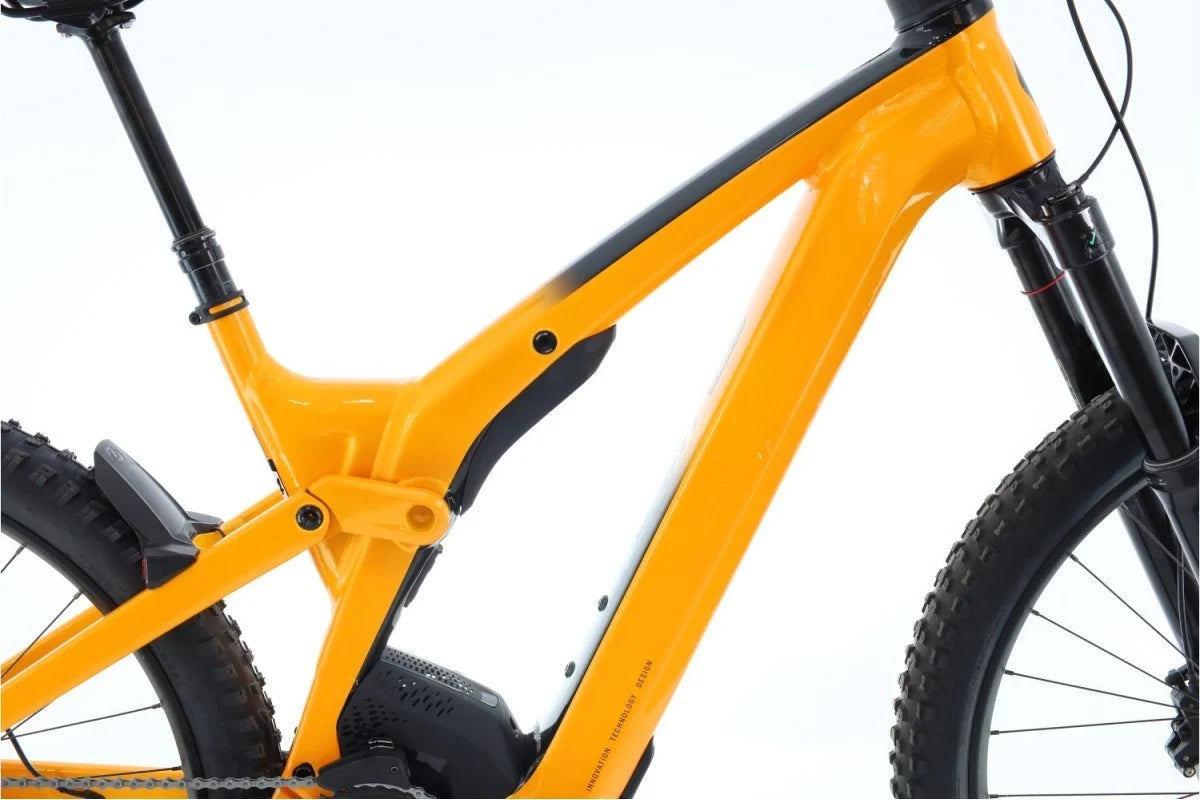

FRAME
Alloy Frame & Link
Virtual 4 link kinematic VLK
29x2.6 / Boost 148x12mm UDH
160mm travel / Bosch Gen4 / Integr. removable Battery
1.8" Headtube, Central Kickstand Mount
Integr. Cable -
TRAVEL
Front: 160mm / Rear: 160mm -

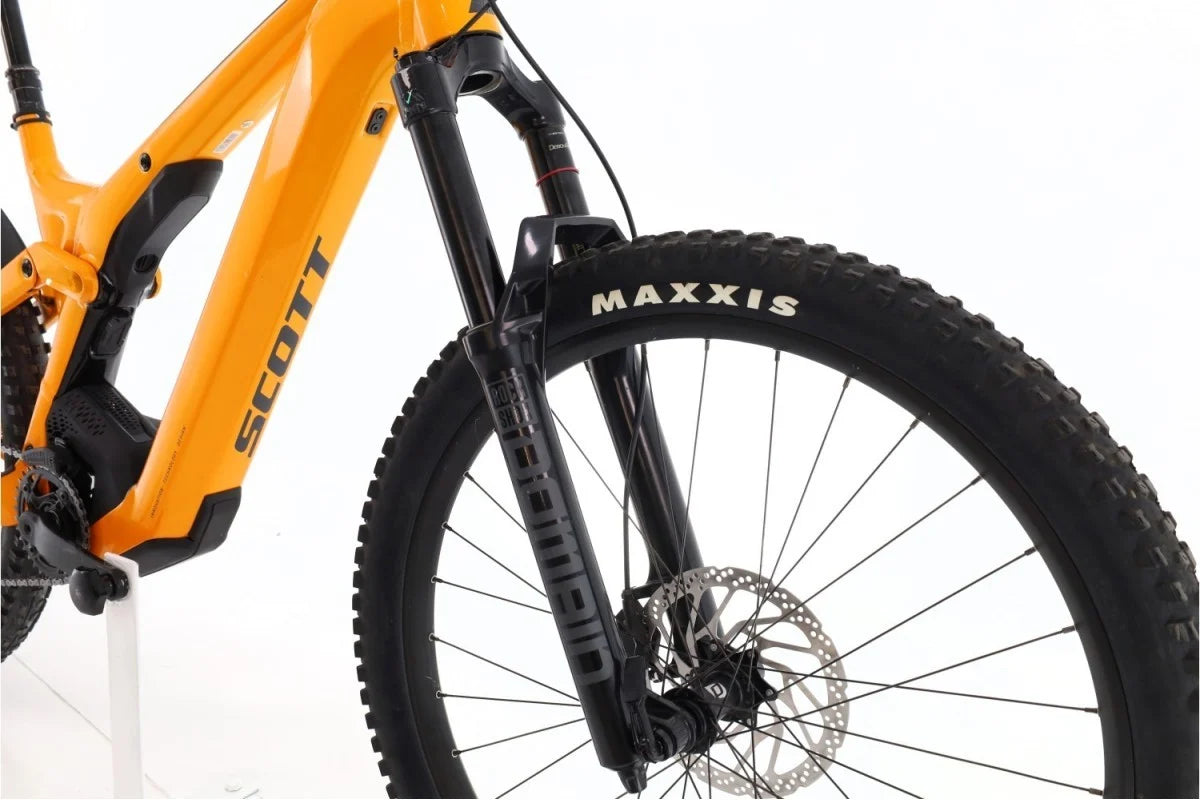

FORK
RockShox Domain Air
15x110mm QR axle / 1.8" Tapered Steerer
Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike -
REAR SHOCK
FOX Float EVOL eRIDE Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm
-
REMOTE SYSTEM
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes -
DRIVE UNIT
Bosch Performance CX
EU: 25kmh / INT: 20mph -
BATTERY
PowerTube 750Wh -
DISPLAY
Bosch LED Remote & Kiox 300 -
CHARGER
4A Charger -

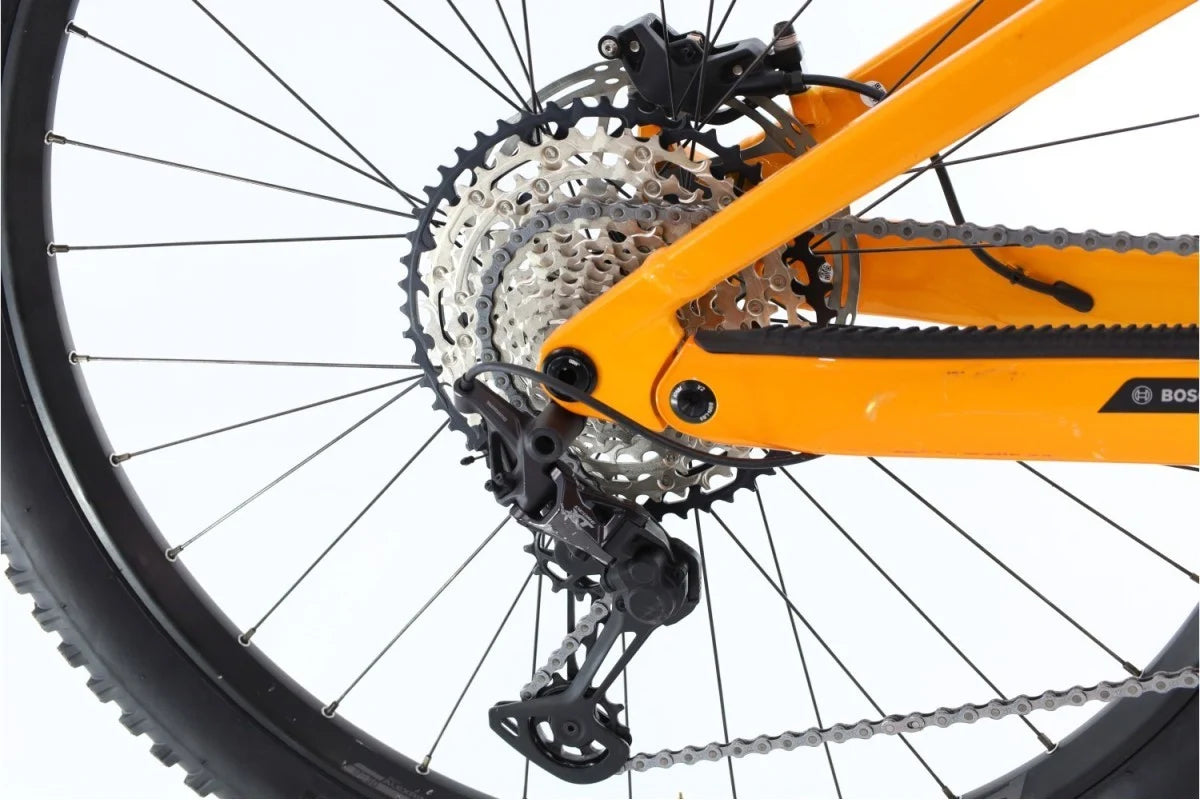

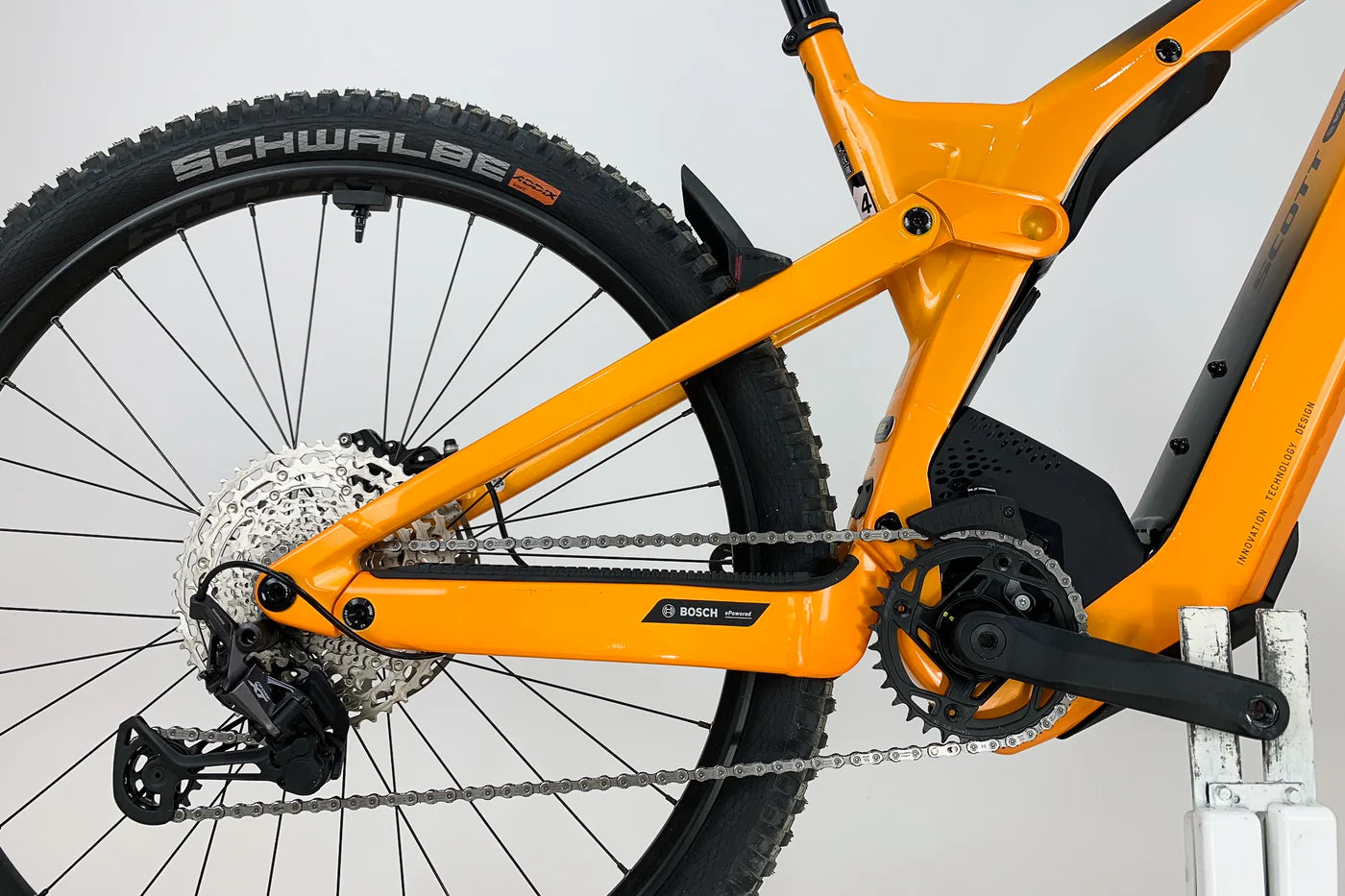

REAR DERAILLEUR
Shimano XT / 12 Speed -
SHIFTERS
Shimano SL-M6100 -

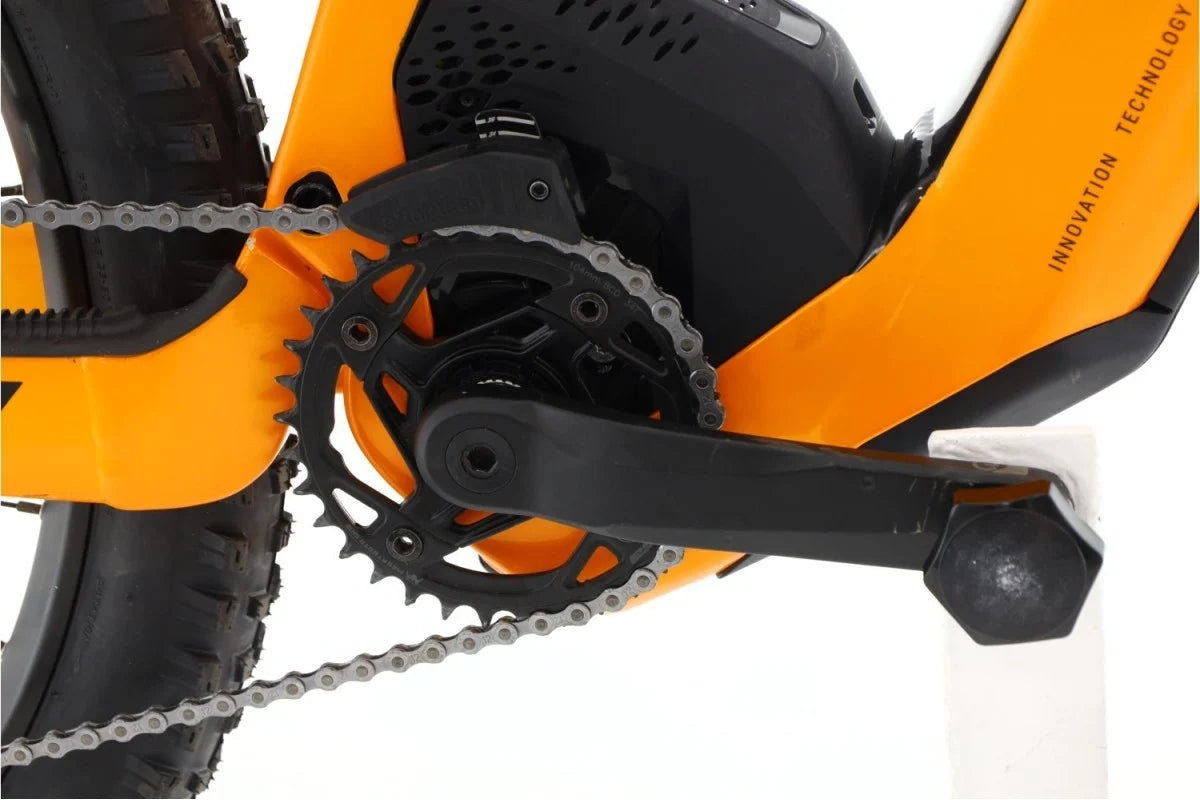

CRANKSET
FSA CK-745 165mm / 34T -
CHAINGUIDE
e*thirteen / e*spec Slider -
CHAINRING
FSA WB604 / 34T / DM / Steel -
CHAIN
Shimano CN-M6100 -
CASSETTE
Shimano CS-M6100 / 10-51 T -
BRAKES
Shimano BR-MT520 4 Piston -
ROTOR
Front: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm -
HANDLEBAR
Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Pro lock-on grips -
H'STEM
Syncros AM2.0 / 6061 Alloy
31.8mm / 4° / 1 1/8" -
SEATPOST
Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M & L size 150mm / XL size 170mm -
SEAT
Syncros Tofino 1.5 Regular
Titanium rails -
HEADSET
Acros / 1.8"
ZS66 OD74 / integr. Cable -
HUB (FRONT)
Formula CL-811 / 15x110mm -
HUB (REAR)
Formula ECT-1481 / Boost 148x12mm -
SPOKES
Stainless Black -
RIMS
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
FRONT TIRE
Maxxis Dissector 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
REAR TIRE
Maxxis Dissector 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
LIGHTS
Bosch Light Cable pre-installed F&R -
EXTRAS
Rock Shox Fork Fender
Syncro eRIDE integrated light fender -
APPROX WEIGHTS IN KG
26.50 -
APPROX WEIGHTS IN LBS
58.42 -
MAX. SYSTEM WEIGHT
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
