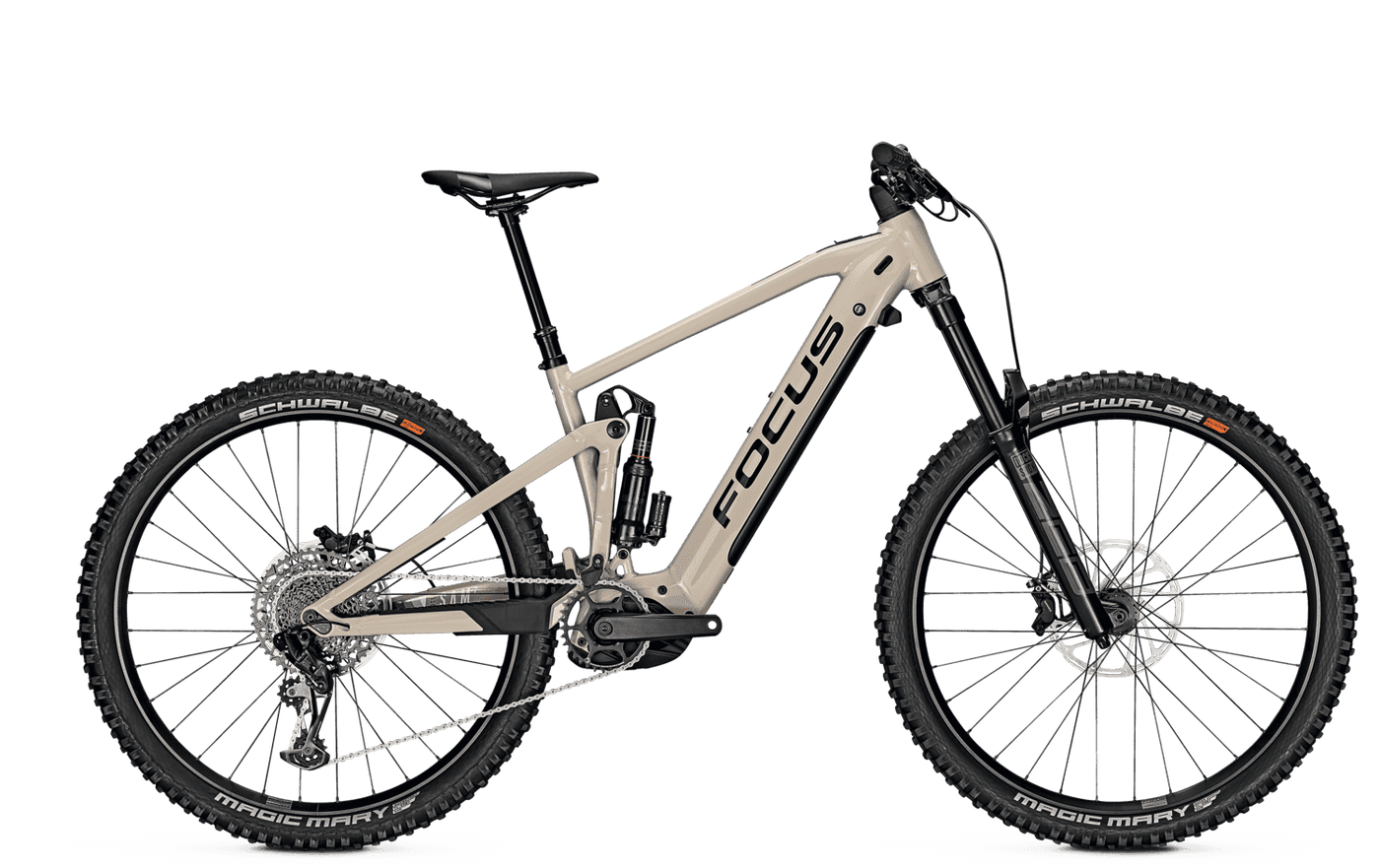

SAM2 6.8 BROWN BOSCH 625Wh 2022
DESIGNED FOR DOWN
SUPER POWERFUL AND DYNAMIC E-MOTOR
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.
OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION
Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.
DESIGNED FOR DOWN
A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. Additionally, the fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).
FEATURES
- Powerful and agile Bosch Performance CX e-drive with Purion display and integrated, removable 625 Wh battery
- 170 mm travel with F.O.L.D. kinematics: RockShox ZEB suspension fork with 38 mm stanchion and SuperDeluxe rear shock
- Fully integrated C.I.S. cable routing with crisp SRAM GX Eagle shifting and strong Code brakes with 220 mm rotors
FRAME | 7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm |
FRAME MATERIAL | Aluminium |
FORK | Rock Shox ZEB 29 Boost, Charger R, DebonAir, 110x15 mm rake, 44 mm rake |
TRAVEL FORK | 170 mm |
SHOCK | Rock Shox Super Deluxe Select+, 230/65 mm, hardware: 25,0 x 8 mm |
MOTOR | Bosch Performance CX Gen4, 85 Nm, 250 W |
BATTERY WATT-HOURS | 625 Wh |
BATTERY AMPERE HOURS | 16,7 Ah |
DISPLAY | Bosch Purion |
SHIFTER | SRAM GX Eagle, 12-speed |
REAR DERAILLEUR | SRAM GX Eagle, 12-speed |
SPROCKET | SRAM PG-1230 Eagle, 12-speed |
CHAIN | SRAM NX Eagle |
CRANKSET | Samox EC40 ISIS |
TRANSMISSION OF DRIVE | front: 34, rear: 10-50 |
BOTTOM BRACKET | Integrated in Drive Unit |
HANDLEBAR | Aluminium, riserbar, 780 mm, rise: 30 mm, backsweep: 9° |
GRIPS | FOCUS Locker SL |
STEM | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
HEADSET | ACROS ZS56/ZS56, FOCUS C.I.S. Integrated |
SADDLE | FOCUS Trail SL |
SEATPOST | Post Moderne dropper post PM-171, 31.6 mm |
BRAKES | SRAM Code R |
BRAKE LEVER | SRAM Code R |
BRAKE | Disc |
RIMS | RODI TRYP30, 30-622 |
REAR HUB | Novatec D162 Disc, 12x148 mm |
FRONT HUB | Novatec D041, 15x110 mm thru axle |
TIRES | Schwalbe Magic Mary, 2.6 Super Trail Soft, 65-622 |
REAR TIRE | Schwalbe Magic Mary, 2.6 Super Gravity Soft, 65-622 |
GEARS | 12 |
BIKE WEIGHT INCL. BATTERY IN KG. | 25 |
